锂电池系列 您当前所在的位置:首页 > 锂电池系列

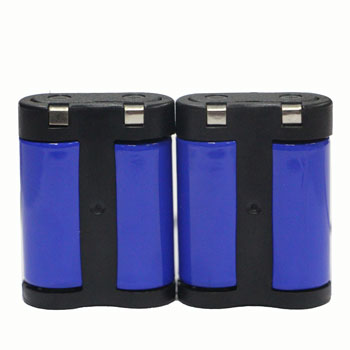

2CR5

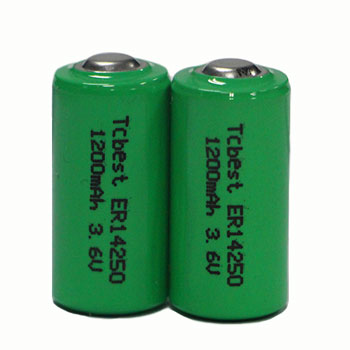

2CR5 		ER14250--1200MAH-3.6V

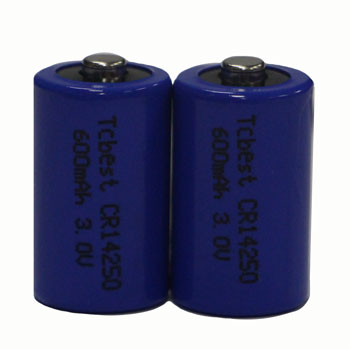

ER14250--1200MAH-3.6V 		CR14250-600MAH-3.0V

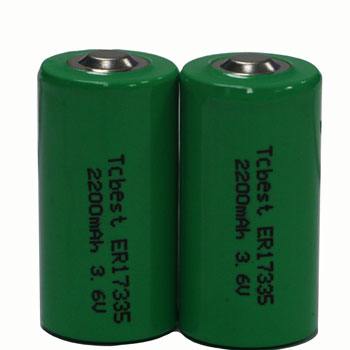

CR14250-600MAH-3.0V 		ER17335-2200MAH-3.6V
ER17335-2200MAH-3.6V

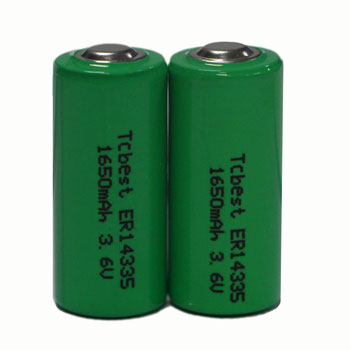

ER14335-1650MAH-3.6V

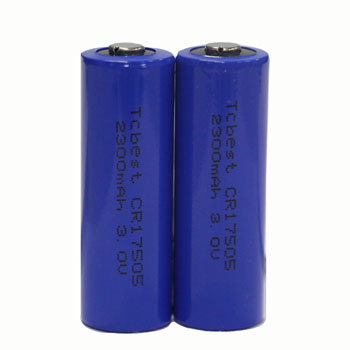

ER14335-1650MAH-3.6V 		CR17505-2300mah-3.0v
CR17505-2300mah-3.0v 		CR14505-1400MAH-3.0V
CR14505-1400MAH-3.0V 		ER9V-1200MAH
ER9V-1200MAH
ER34615-19000MAH-3.6V
ER34615-19000MAH-3.6V 		CR2-3V-850mah
CR2-3V-850mah
总共 10 条记录，共 1 页，每页 12 条记录，当前是第 1 页。[ 1 ]

圆柱锂电池

Model Voltage Size(mm) Capacity Weight Internal Resistance
(V) Diameter Height (Mah) (g) （mΩ）
ICR10180 3.7 10.2 18.5 90 3.6 ≤250
ICR10440 3.7 10.2 43.7 320 9 ≤120
ICR14250 3.7 10.2 43.7 300 8.9 ≤120
ICR14270 3.7 14.1 24.7 310 10 ≤120
ICR15266 3.7 15.2 26.1 300 10.5 ≤120
ICR16500 3.7 16.5 49.7 1000 27 ≤80
ICR17300 3.7 16.8 31 650 16.9 ≤110
ICR17335 3.7 16.8 34.5 750 18.8 ≤110
ICR17360 3.7 16.8 35.7 800 20.8 ≤90
ICR17670 3.7 16.8 66.7 1400 36.3 ≤80
ICR18350 3.7 18.2 34.7 850 21.2 ≤90
ICR18490 3.7 18.2 48.4 1250 31 ≤80
ICR18490 3.7 18.2 48.7 1300 32 ≤80
ICR18650 3.7 18.2 67.7 1800 43.9 ≤80
ICR18650 3.7 18.2 64.7 1900 44.3 ≤80

聚合物软包电池

Model Normal Voltage Capacity Dimension(mm)
(mAH) T(±0.2) W(±0.5) H(±0.2)
TC008120 3.7V 50 0.8 81.0 20.0
TC014128 3.7V 40 0.1 41.0 28.0
TC085046 3.7V 80 0.8 50.0 46.0
TC052323 3.7V 15 0.5 23.0 23.0
TC104050 3.7V 120 1.0 40.0 50.0
TC163065 3.7V 200 1.6 30.0 65.0
TC359012 3.7V 200 3.5 90.0 12.0
TC122070 3.7V 85 1.2 20.0 70.0
TC201212 3.7V 10 2.0 12.0 12.0
TC052486 3.7V 40 0.5 24.0 86.0
TC053039 3.7V 40 0.5 30.0 39.0
TC241521 3.7V 16 2.4 15.0 21.0
TC301225 3.7V 60 3.0 12.0 25.0
TC351423 3.7V 70 3.5 14.0 23.0
TC301525 3.7V 70 3.0 15.0 25.0
TC402030 3.7V 180 4.0 20.0 30.0
TC402035 3.7V 250 4.0 20.0 35.0
TC303040 3.7V 350 3.0 30.0 40.0
TC353035 3.7V 300 3.5 30.0 35.0
TC523450 3.7V 950 5.2 34.0 50.0
TC523450 3.7V 1000 5.2 34.0 50.0
TC503035 3.7V 500 5.0 30.0 35.0
TC503040 3.7V 550 5.0 30.0 40.0
TC602030 3.7V 250 6.0 20.0 30.0
TC602040 3.7V 450 6.0 20.0 40.0
TC651730 3.7V 280 6.5 17.0 30.0
TC702040 3.7V 550 7.0 20.0 40.0
TC753048 3.7V 1000 7.5 30.0 48.0
TC802040 3.7V 600 8.0 20.0 40.0
TC802060 3.7V 1000 8.0 20.0 60.0
TC805285 3.7V 3650 8.0 52.0 85.0
TC585060 3.7V 2000 5.8 50.0 60.0
TC7065125 3.7V 7500 7.0 65.0 125.0
TC603535 3.7V 650 6.0 35.0 35.0
TC903048 3.7V 800 9.0 30.0 48.0
TC503048 3.7V 700 5.0 30.0 48.0
TC723449 3.7V 1200 7.2 34.0 49.0

锂亚电池

Model Voltage
(V)		 Dimensions
(mm)		 Capacity
(Mah)		 Weight
Approx(g)		 Operating
Temperature
(℃)
GB IEC
ER13150 　 3.6 13.0X15.0 450 5.5 —55~+85
ER14250 1/2AA 3.6 14.5X25.0 1200 10 —55~+85
ER14335 2/3AA 3.6 14.5X33.5 1650 13 —55~+85
ER14505 AA 3.6 14.5X50.5 2400 19 —55~+85
ER17335 　 3.6 17X33.5 2100 30 —55~+85
ER10450 AAA 3.6 10X45.0 800 9 —55~+85
ER10280 　 3.6 10.0X28.0 540 5 —55~+85
ER34615 D 3.6 34.2X61.5 19000 107 —55~+85
9VLI 9V 3.6 48.8X17.8X7.5 1200 16 —55~+85
ER14250M 1/2AA 3.6 14.4X25.0 750 10 —55~+85
ER14335M 2/3AA 3.6 14X33.5 1200 13 —55~+85
ER14505M AA 3.6 14.5X50.5 1800 19 —55~+85
ER17335M 　 3.6 17.0X33.5 1700 20 —55~+85
ER18505M A 3.6 18.5X50.5 3000 32 —55~+85
ER26500M C 3.6 26.2X50.5 6500 55 —55~+85
ER34615M D 3.6 34.2X61.5 13000 106 —55~+85
ER14250S 1/2AA 3.6 14.4X25.0 550 10 —40~+150
ER14505S AA 3.6 14.5X50.5 1600 19 —40~+150
ER34615S D 3.6 34.2X61.5 10500 107 —40~+150
ER18505S 　 3.6 18.5X50.5 3200 32 —40~+150
ER24505S 　 3.6 24.2X50.5 500 10 —40~+150
ER26500S C 3.6 26.2X50.0 4100 55 —40~+150

锂铁电池

Model Dimensions Internal
Resistance
（mΩ）		 Voltage
(V)		 Capacity
(Mah)		 Discharge
performance		 Weight
Approx(g)
Out Dia Height
IFR14500 14±0.2 50±0.2 ≤35 3.2 450 　 18
IFR17500 17±0.2 50±0.2 ≤47 3.2 750 　 25
IFR18650 18±0.2 65.0±0.2 ≤40 3.2 1350 　 45
IFR22500 22±0.2 50±0.2 ≤40 3.2 1300 1-4C 43
IFR22650 22±0.2 65.2±0.2 ≤35 3.2 2000 　 60
IFR26650 26±0.2 65.5±0.2 ≤35 3.2 3000 　 85
IFR32650 32±0.2 65.5±0.2 ≤30 3.2 4200 　 128
IFR18650 18±0.2 50±0.2 ≤25 3.2 900 5-20C 32
IFR18650 18±0.2 65.0±0.2 ≤20 3.2 1150 5-20C 42
IFR26650 22±0.2 65.5±0.2 ≤20 3.2 1700 5-20C 60
IFR26650 26±0.2 65.5±0.2 ≤15 3.2 2400 5-15C 84
IFR22430 22±0.2 43.0±0.2 ≤25 3.2 1100 5-20C 50
IFR32600 22±0.2 60.0±0.2 ≤15 3.2 3000 5-15C 125
IFR32600 22±0.2 60.0±0.2 ≤15 3.2 3000 5-15C 125
